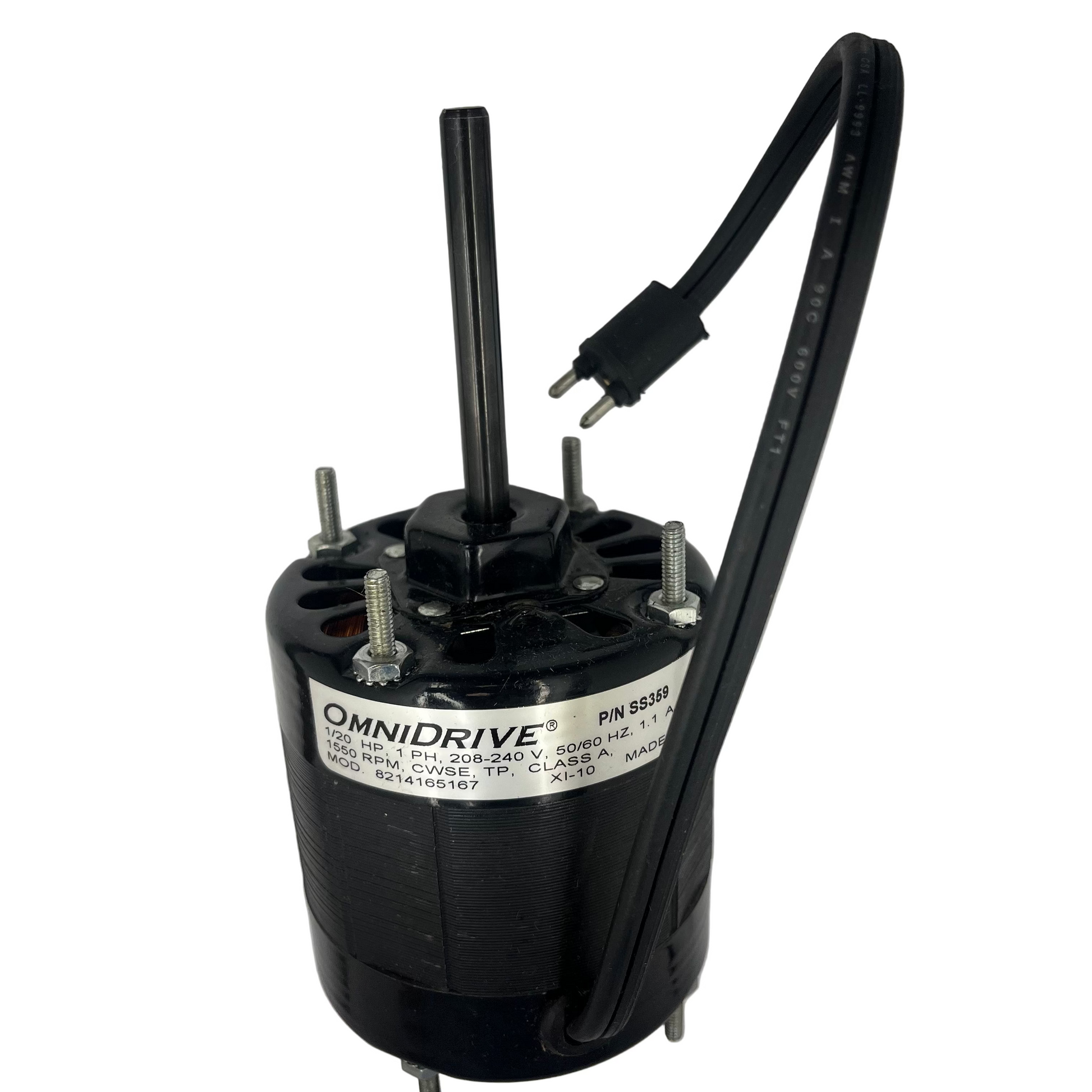

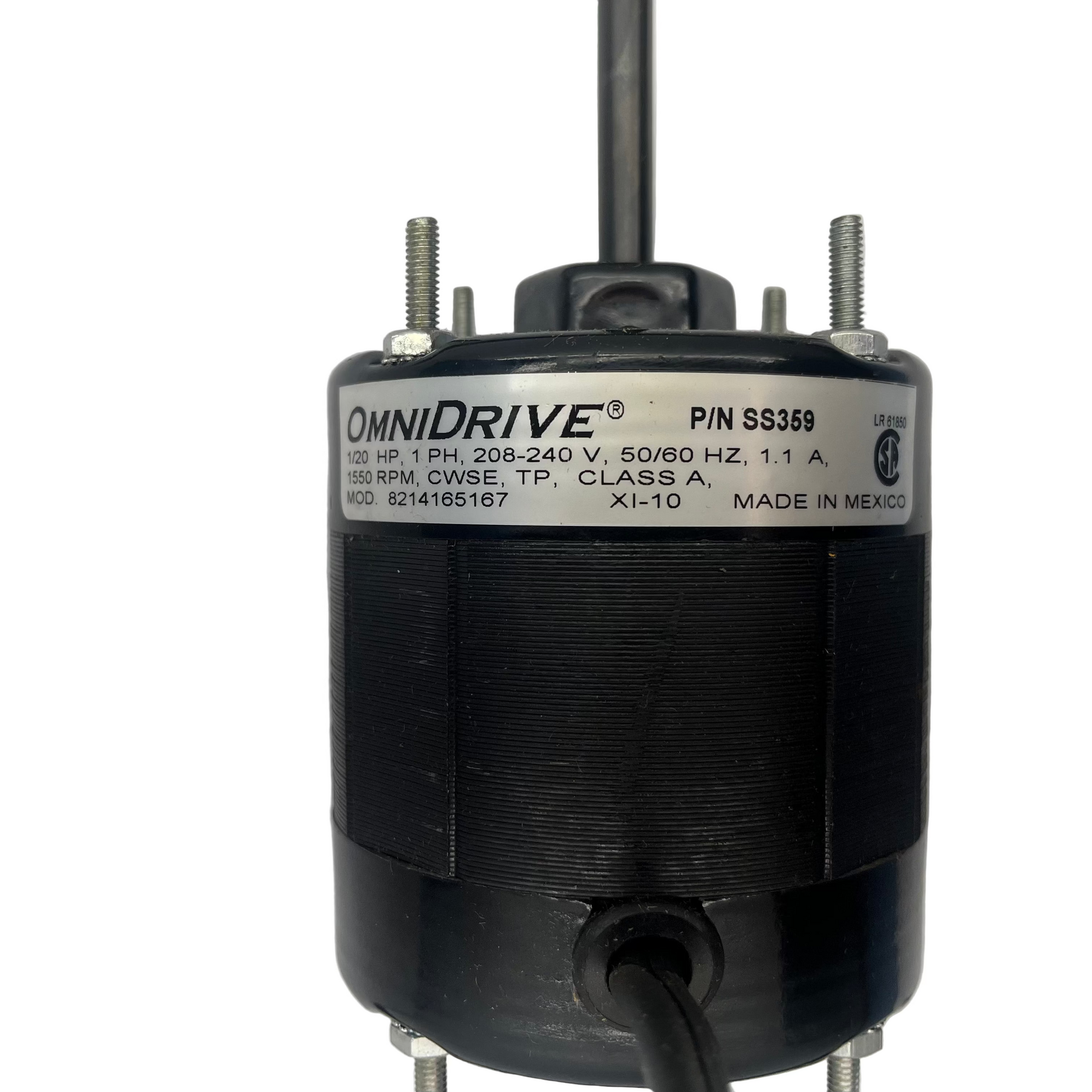

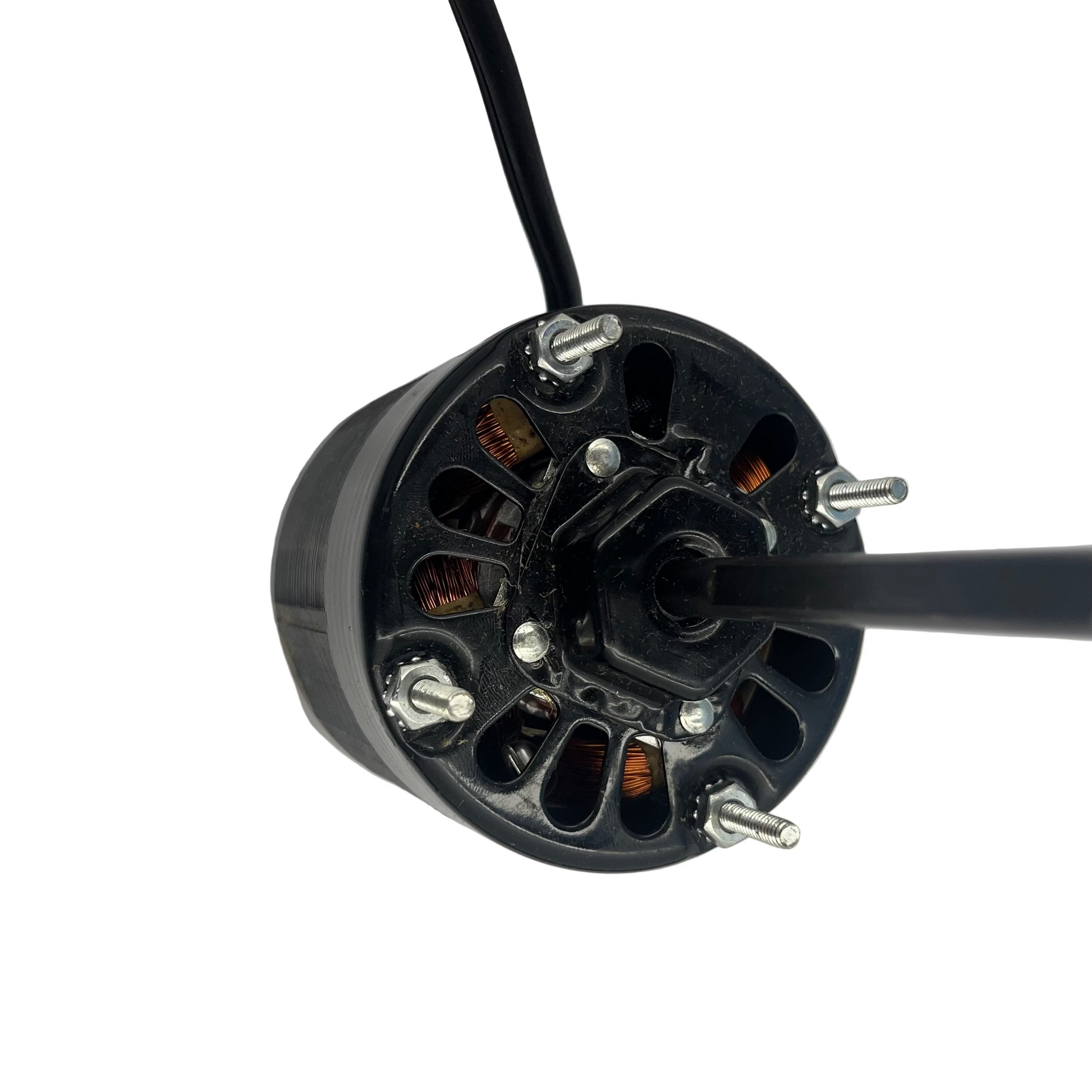

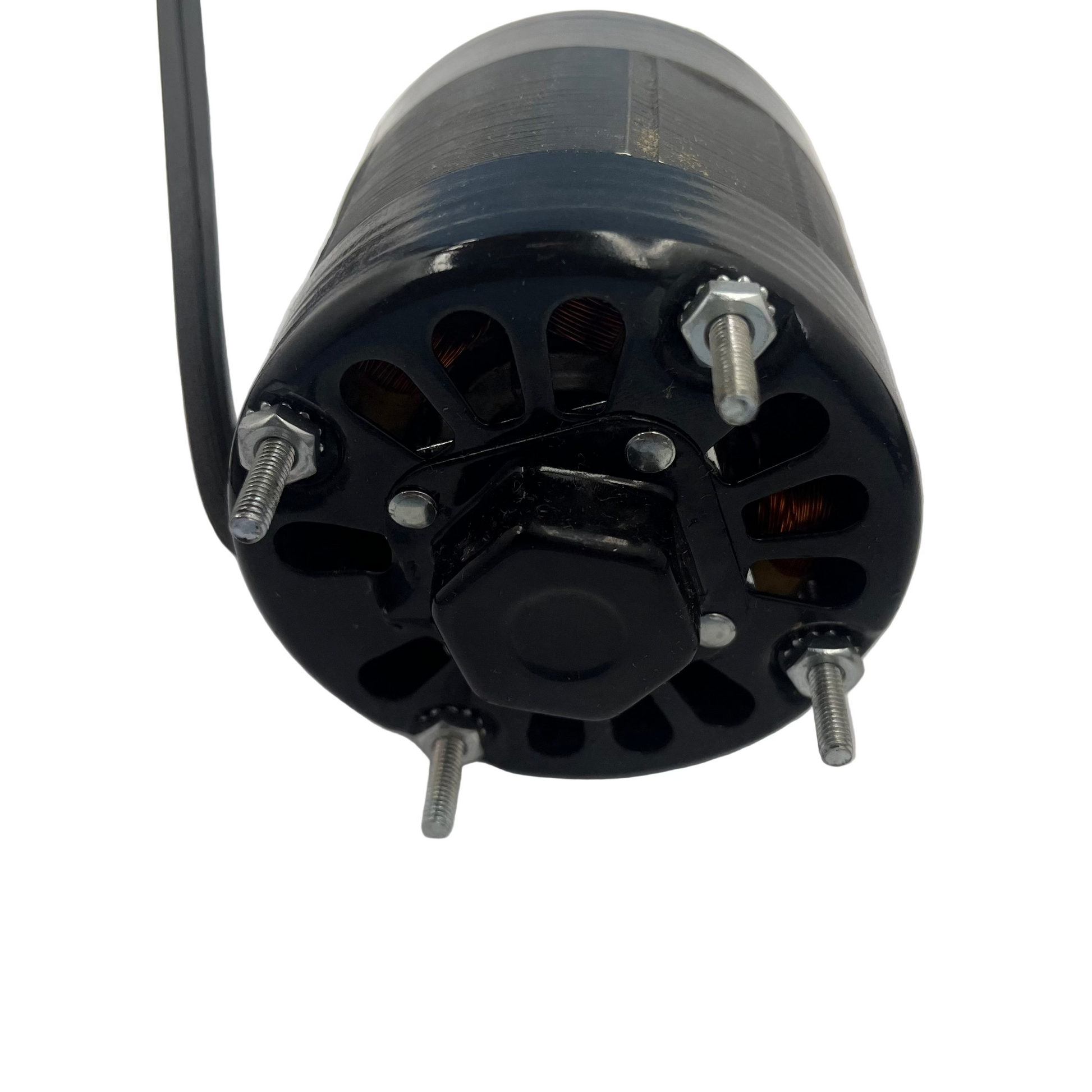

Omnidrive SS359 1/20HP, 230V, 1550 rpm 3.3" evaporator motor

Application: Primarily used in HVAC/R (Heating, Ventilation, Air Conditioning, and Refrigeration) systems, such as for evaporator coils.

Specifications:

o  Horsepower (HP): 1/20 HP

o  Voltage: 208-230V

o  Amps: 1.0 or 1.1A

o  RPM: 1550

o  Frequency: 60/50 Hz

o  Rotation: CWSE (Clockwise Shaft End)

o  Enclosure: Open

o  Bearings: Sleeve

o  Protector: Thermally protected

o  Shaft Dimensions: 5/16" x 3-7/32"

o  Frame/Diameter: 3.3"

o  Features: Often includes a 12" Lyall Cord & Plug and Hex Hubs.

o  Weight: Approximately 4 to 5 lbs.
