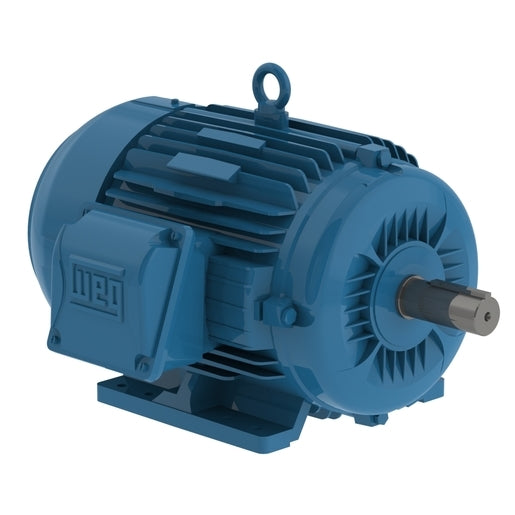

WEG HT010504NPW22 10HP 575 1800

Key Product Features and Technical Specifications:

• Motor Type: Three-phase, induction, continuous duty, squirrel cage motor.
• Horsepower: 10 HP (7.5 kW)
• Voltage: 575 V
• Speed: 1765 RPM (Synchronous speed is 1800 RPM, 4-pole)
• Frequency: 60 Hz
• Frame Size: 213/5T or 215T
• Efficiency: NEMA Premium Efficiency (Nominal Efficiency: 91.7%)
• Enclosure: Totally Enclosed Fan Cooled (TEFC), which is an IP55 degree of protection, making it suitable for dusty and wet environments.
• Material: Robust cast iron frame, fan cover, and terminal box for durability.
• Mounting: Foot-mounted (F-1).
• Insulation: Class F insulation with a temperature rise limited to Class B.
• Service Factor: 1.25
• Bearings: Double-shielded ball bearings (6308 ZZ on the drive end, 6207 ZZ on the non-drive end).
• Noise Level: 58.0 dB(A)
• Applications: Ideal for general-purpose applications such as pumps, fans, compressors, conveyors, and various industrial machinery where reliability and energy efficiency are crucial.
